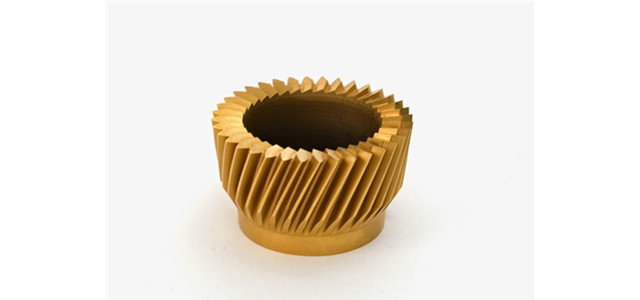

Helical Gear Shaping Cutter

Helical Gear Shaping Cutter

Module: m1.75-m5,DP
Tooth profile; GB,DIN3972 standard
Quality: A, AA
Material:HSS M2,M35,S390
Coating: TiN,AP

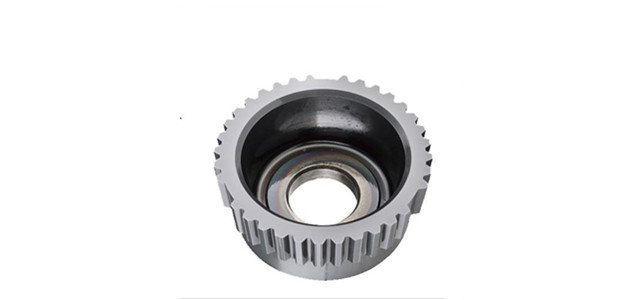

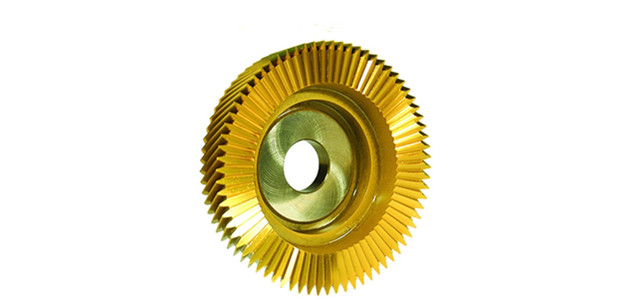

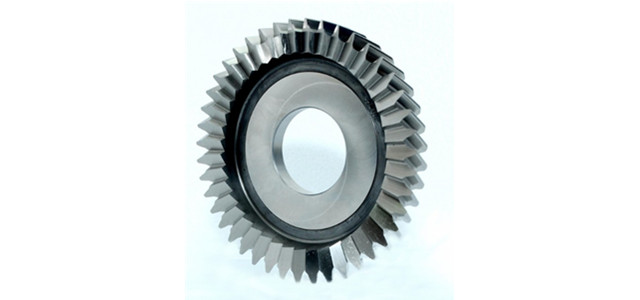

HSS Gear Shaping Cutter Tools type: disk-type gear shaping cutter, deep counterbore-type shaping cutter and shank-type shaping cutter

Conventional standard bore diameters: 31.743mm, 44.443mm,etc

Profile modifications of gear shaping cutters: Semi-topping, Protuberance,Topping,Modification of flank for tip and/or root relief on gear, Modification of pressure angle, Combination of several of the above modifications

Designing and Production of relief ground Shaping cutters for involute splines, worms (cutter to be used in hobbing machine by kinematics inversion process) and relief machined cutters for sprocket, parallel sided splines etc., are done at Jiangxing Tools.

The range of Shaping cutters available at Jiangxing Tools includes different varieties of disc type, hub type and shank type. Tandem Shaping cutters are also supplied

Shaper cutter material is generally AISI M35 (6-5-2+5%Co). On special request, Shapers made in powder material (ASP2030, ASP2052,S390) and TiN, Ti AIN, Alcrona Pro coated Shapers are supplied. Normally, accuracy classes are as per DIN 1829 Standard AA,A. However Shaper cutters are made to suit other accuracy Standards also.
