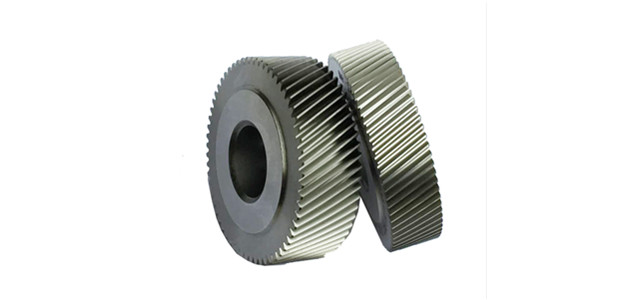

HSS Conventional Gear Shaving Cutter
HSS Conventional Gear Shaving Cutter
Module: m1-m9,DP,PA20
Ouside dia. 80-270mm
Quality: Class A GB
Material: HSS M2, M35
-
HSS Conventional Gear Shaving Cutter
Module: m1-m9,DP,PA20
Ouside dia. 80-270mm
Quality: Class A GB
Material: HSS M2, M35

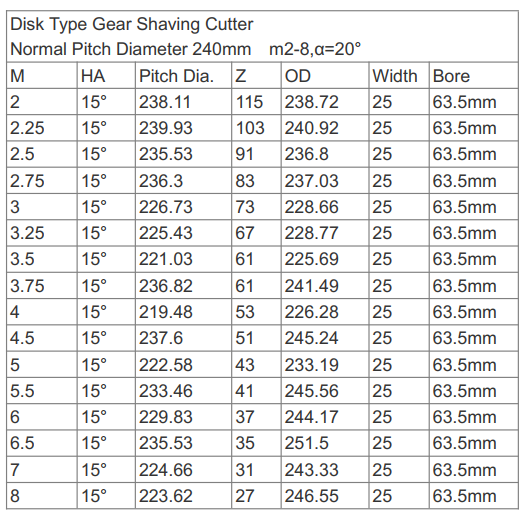

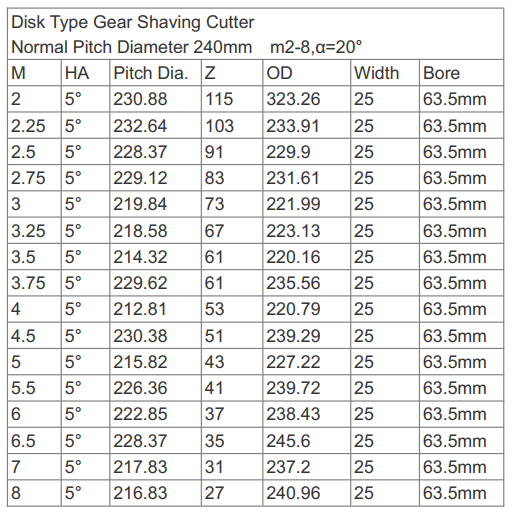

Specifications of standard disk type conventional gear shaving cutter with m2-8, PCD240mm as following:
Manufacturing of various types of Gear Shaving cutters such as conventional and plunge-cut are undertaken
Special profiles are incorporated on the Cutter to generate tip relief, profile crowning, lead crowning, etc., on component
The Shaving machine at Jiangxing Tools tries out the Shaving cutter manufactured here, to confirm the profile accuracy. This is done at extra cost with necessary mandrels, component blanks, etc., supplied by the customer
Pre-shaved tools like Hobs/Shaping cutters along with Shaving cutters can be supplied from a single source - Jiangxing Tools. Hence, design parameters can be worked out to achieve optimum results on the components
Gear Shaving cutters made out of superior HSS Grades can be supplied. Re-sharpening of Jiangxing Tools make cutters as well as imported cutters are carried out. Customers have to furnish the re-sharpening chart along with other make and imported cutters.
